ZF615A 15L agricultural plant protection drone

technical parameter

Aircraft wheelbase: 1650 mm

Flying speed: 0-15 / s

Frame type: X-type six-rotor

Paddle size: 30 inches / 76.2 cm

Relative flying height: 1-3m from crops

Flight control system: Z ++

Ground Station: Support Android

Remote control: integrated image and data transmission

Lithium polymer battery: 22.2V / 6S / 25C / 22000mAh * 2

Battery life: 200-300 charge and discharge

Duration of a single flight: 8-12 minutes per flight

No-load weight: 14.30 kg

Maximum load: 16L

Recommended operating temperature: 0 ° C- + 30 ° C

Spraying method and spraying width: pressure type four nozzles; 3-5 meters

Stand-alone operating efficiency: 400-600 acres / day

Model features:

Brushless motor, blade protection, wireless remote start, remote control;

AB point semi-autonomous operation; intelligent full autonomous operation

Ground station selction, mobile phone measurement, and fully autonomous flight planning;

Power failure, drug discharge memory continued spraying, dose display;

Foldable rack for easy transportation and storage;

Flight supervision platform, easy to operate statistics and third-party data call.

Android phone ground station, fully autonomous flight planning

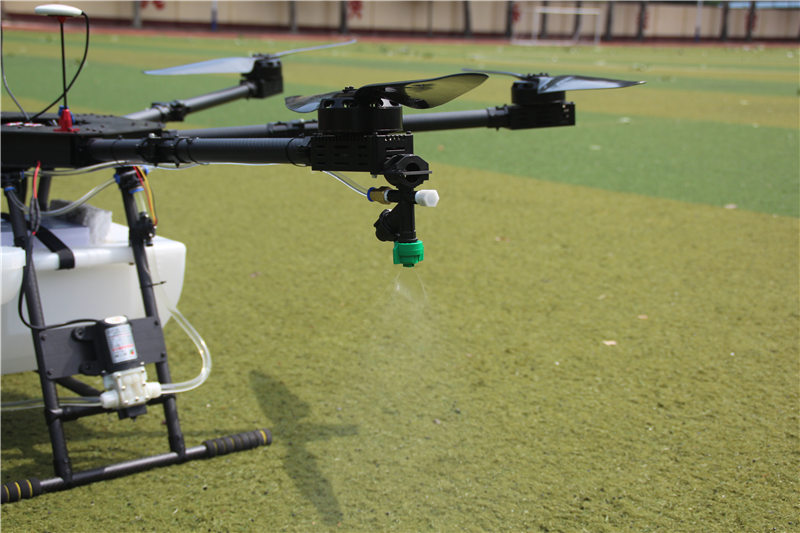

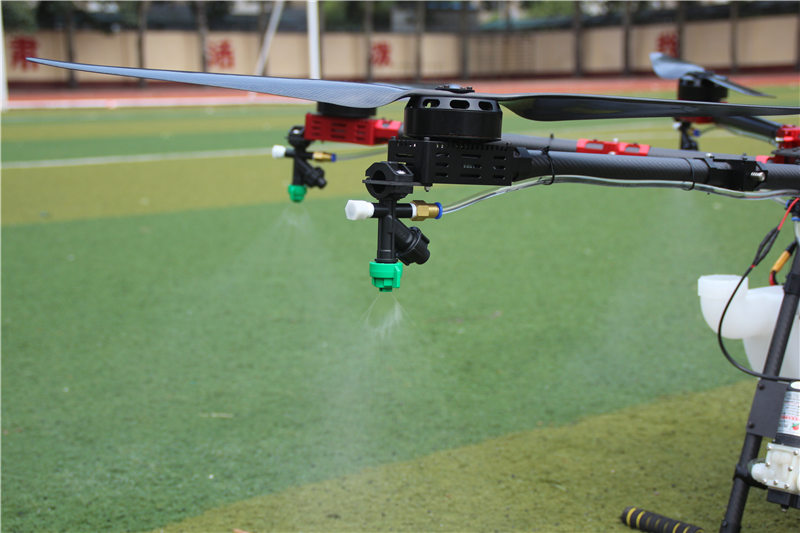

German ceramic pressure nozzle

Zhifei UAV purchase customer training
