Technical parameters of Zhifei Jinong ZFJN625 agricultural plant protection drone

Technical parameters Specific data

Aircraft wheelbase 1850mm

Spraying diameter 60-150μm (depending on the actual working environment and work efficiency)

Flight speed 0-10/s

Spray width (wide) 6-8m, large coverage area, uniform atomization

Pesticide load 25kg

Expanded size (mm)

2720*2720*680

Folding size (mm) 840*740*680

Single operation time 5-10 minutes / sorties

Control efficiency 4 mu/min

Flying height 0-20m

Spraying height: field working distance is 1-3 meters from the top

Brushless motor, wireless remote start, remote intelligent control

Six-rotor 34-inch folding propeller design, large wind field

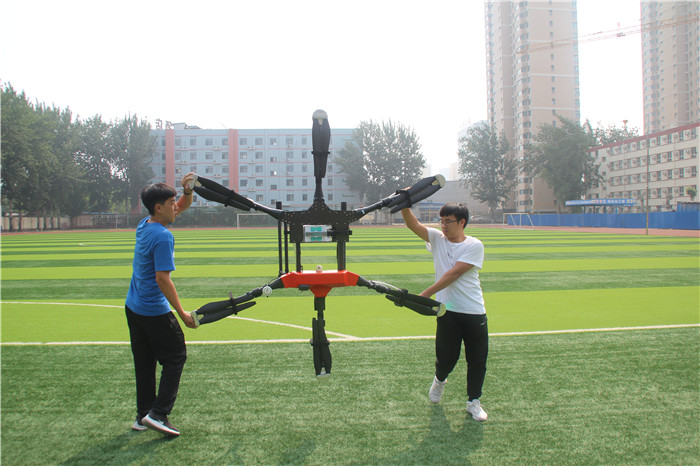

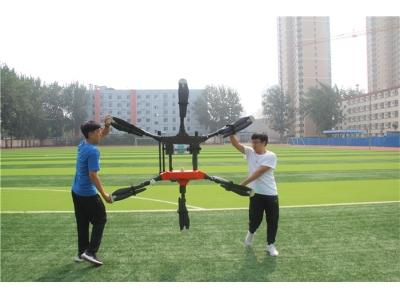

The whole machine can be folded for easy transportation

Suitable for various application environments, 0℃~+30℃

Brushless water pump, stable output flow, combined spraying with four nozzles, flow rate 0.2-0.4L/min adjustable

Dual GPS satellites and positioning system in RTK make the aircraft positioning more accurate
